Technical Specifications
TE Connectivity V23040-A0001-B201 technical specifications.
General
| Coil Power | 130mW |
| Coil Resistance | 320R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 2A |
| Contact Material | Gold |
| Depth | 10mm |
| Height | 8.5mm |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | PCB |
| Reach SVHC Compliant | Unknown |
| Termination | Through Hole |
| Throw Configuration | SPDT |
| DC Rated Voltage | 5V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity V23040-A0001-B201 Datasheet
Download the complete datasheet for TE Connectivity V23040-A0001-B201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

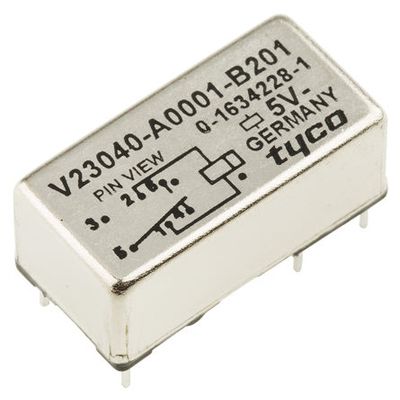

Product Images
