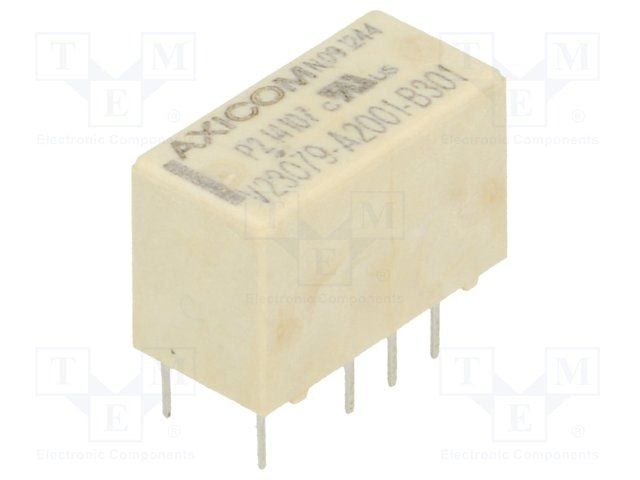

DPDT signal relay with a 5VDC coil voltage and 200mW coil power. Features a 2A maximum contact current rating and 500mA continuous contact current rating with gold-plated ruthenium contacts. Operates within a -40°C to 85°C temperature range, offering 4ms operate and release times. Through-hole mounting with PCB termination, compliant with RoHS and ELV standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity V23079A2001B301 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity V23079A2001B301 technical specifications.
| Actuating System | DC |
| Package/Case | DIP |
| Coil Current | 28.09mA |
| Coil Power | 200mW |
| Coil Resistance | 178R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 5V |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 220V |
| Depth | 7.2mm |
| ELV | Compliant |
| Height | 9.5mm |
| Insertion Loss | -0.27dB |
| Lead Free | Lead Free |
| Length | 14.6mm |
| Life (Hours) | 50000000Hour |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Operate Time | 4ms |
| Packaging | Box |
| Power Consumption | 140mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | V23079, AXICOM |
| Termination | PCB |
| Throw Configuration | DPDT |
| Weight | 0.0988oz |
| Width | 7.2mm |
| RoHS | Compliant |
