SPDT signal relay featuring a 5V DC non-latching coil with 42mA coil current and 210mW coil power. Offers a 6A contact current rating with silver-tin contacts and a 1 million cycle electrical life. Designed for through-hole PCB mounting with PC pin termination, this general-purpose relay has a 12ms operate time and 5ms release time. The component measures 28mm in length, 5mm in depth, and weighs 6g, with an IP67 rating.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity V23092A1905A301 technical specifications.
General
| Coil Current | 42mA |
| Coil Power | 210mW |
| Coil Resistance | 119R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Depth | 5mm |
| Length | 28mm |
| Life (Hours) | 10000000Hour |
| Max Current Rating | 6A |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operate Time | 12ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | SNR, SCHRACK |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Weight | 6g |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity V23092A1905A301 Datasheet
Download the complete datasheet for TE Connectivity V23092A1905A301 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

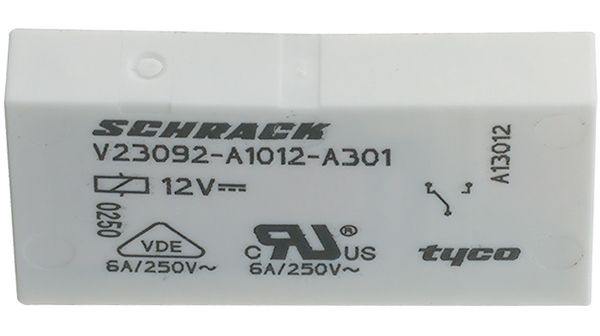

Product Images
