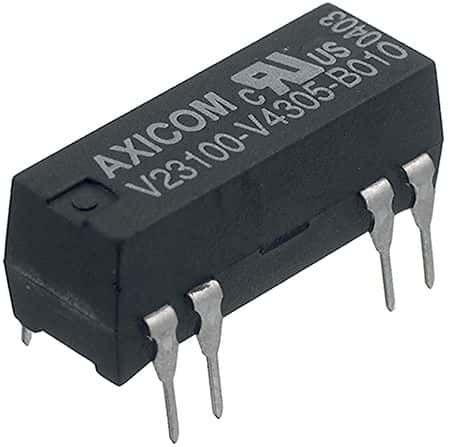

DPST momentary reed relay featuring a 24VDC coil with 12mA coil current and 288mW coil power. Contact ratings include 0.5A switching current and 24VDC contact voltage, with Ruthenium plating. This through-hole mount component offers a 0.75ms operate time and 0.15ms release time, with a switching capacity of 10W. Operating temperature range is -40°C to 85°C, and it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity V23100V4324B010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuating System | DC |
| Coil Current | 12mA |
| Coil Power | 68mW |
| Coil Resistance | 2kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 1.25A |
| Contact Plating | Ruthenium |
| Contact Voltage Rating (DC) | 24V |
| ELV | Compliant |
| Height | 0.295inch |
| Insertion Loss | -0.12dB |
| Length | 0.76inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 0.75ms |
| Packaging | Rail/Tube |
| Power Consumption | 288mW |
| Ratings | IP54 |
| Relay Type | Relay |
| Release Time | 0.15ms |
| RoHS Compliant | Yes |
| Series | V23100-V4, AXICOM |
| Switching Capacity | 10W |
| Switching Current | 250mA |
| Termination | PCB |
| Throw Configuration | DPST |
| Weight | 1.8g |
| Width | 0.276inch |
| RoHS | Compliant |
