DPDT signal relay with a 3A contact current rating and 250VAC/220VDC voltage rating. Features a 5VDC coil voltage, 70mA coil current, and 45Ω coil resistance. Contact material is silver with gold plating, and the relay offers a 5ms operate time and 4ms release time. Designed for through-hole PCB mounting with PC pin termination, operating within a -40°C to 75°C temperature range.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity V23105A5475A201 technical specifications.
General
| Application(s) | SIGNAL |
| Package/Case | DIP |
| Coil Current | 70mA |
| Coil Power | 695mW |
| Coil Resistance | 45R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 3A |
| Contact Material | Silver, Gold |
| Contact Plating | Gold |
| Depth | 10mm |
| ELV | Compliant |
| Height | 11mm |
| Length | 20.2mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Operate Time | 5ms |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | V23105, AXICOM |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 220V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity V23105A5475A201 Datasheet
Download the complete datasheet for TE Connectivity V23105A5475A201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

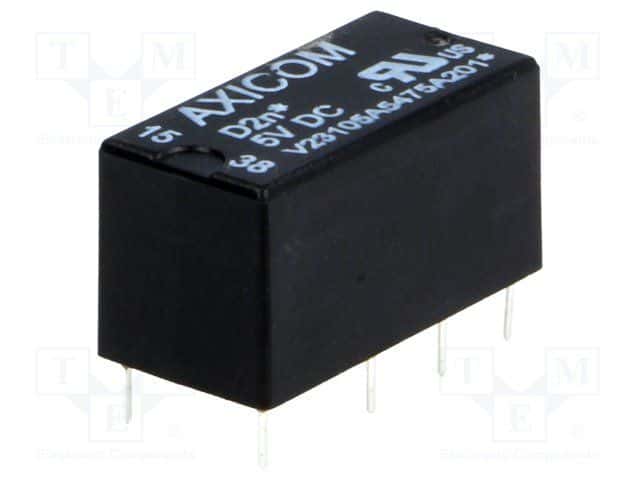

Product Images
