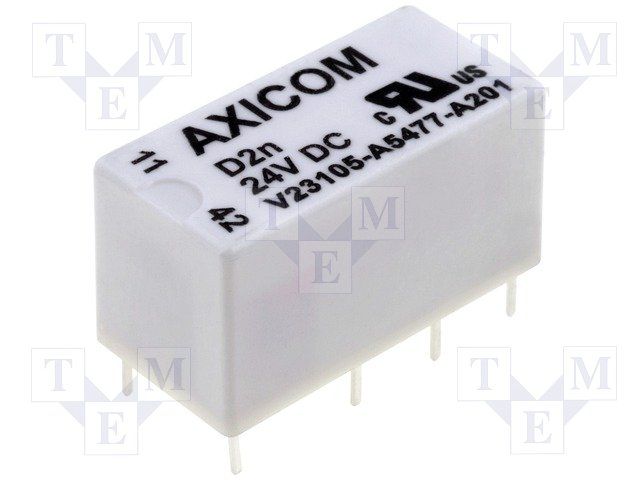

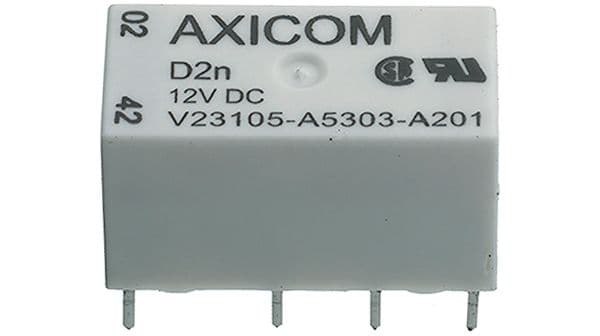

DPDT signal power relay featuring a 24 VDC coil voltage and 3A contact current rating. This through-hole mounted component offers a 250VAC/220VDC maximum voltage rating and silver/gold contact material with gold plating. Operating within a -40°C to 85°C temperature range, it includes a 6ms operate time and 4ms release time.
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
TE Connectivity V23105A5477A201 technical specifications.
General
Actuating System
AC/DC
Application(s)
SIGNAL
Coil Current
23mA
Coil Power
550mW
Coil Resistance
1.05kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
3A
Contact Material
Silver, Gold
Contact Plating
Gold
Contact Voltage Rating (DC)
220V
Depth
10mm
ELV
Compliant
Height
0.433inch
Insertion Loss
-0.27dB
Length
20.2mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Through Hole, PCB
Operate Time
6ms
Packaging
Rail/Tube
Power Consumption
400mW
Reach SVHC Compliant
Unknown
Relay Type
Relay
Release Time
4ms
RoHS Compliant
Yes
Series
V23105, AXICOM
Termination
PCB
Throw Configuration
DPDT
Weight
6g
Width
10mm
Compliance
RoHS
Compliant
