15A thermal circuit breaker, single pole, featuring a push-pull actuator and screw termination. Rated for 250VAC/50VDC operation, this panel-mount device offers series trip circuit function. It operates within a temperature range of -20°C to 60°C and is UL approved and RoHS compliant. Dimensions are 40.64mm length, 17.53mm width, and 35.15mm height.
Voltage Rating250V
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W23-X1A1G-15 technical specifications.
General
Actuator Type
Push-Pull
Approvals
UL
Breaker Type
Thermal
Circuit Function
SERIES TRIP
Color
Black
Current Rating
15A
ELV
Non-Compliant
Height
35.15mm
Lead Free
Lead Free
Length
40.64mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Panel
Number of Poles
1
Operating Supply Voltage
250V
Package Quantity
25
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W23
Termination
Screw
Time to Trip
30s
Voltage Rating
250V
Voltage Rating (AC)
240V
DC Rated Voltage
50V
Weight
2.010616oz
Width
17.53mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W23-X1A1G-15 Datasheet
Download the complete datasheet for TE Connectivity W23-X1A1G-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

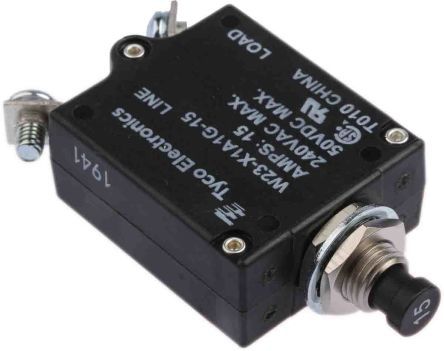

Product Images
