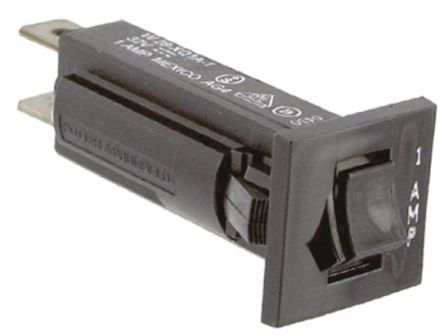

This thermal breaker has a current rating of 1A and a voltage rating of 250V. It is designed for panel mount and has a maximum operating temperature of 60°C and a minimum operating temperature of -20°C. The breaker is compliant with RoHS regulations and is lead free. It is also approved by UL and has a height of 19.31mm, length of 38.99mm, and width of 19.31mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity W28-XQ1A-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Push to Reset |
| Approvals | UL |
| Breaker Type | Thermal |
| Current Rating | 1A |
| ELV | Non-Compliant |
| Height | 19.31mm |
| Lead Free | Lead Free |
| Length | 38.99mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Panel |
| Number of Poles | 1 |
| Panel Thickness | 1.57mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | W28 |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 32V |
| Weight | 0.35274oz |
| Width | 19.31mm |
| RoHS | Compliant |
