Voltage Rating250V
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W51-A152A1-5 technical specifications.
General
| Actuator Type | Rocker |
| Approvals | UL |
| Breaker Type | Thermal |
| Current Rating | 5A |
| Height | 27.9mm |
| Lead Free | Lead Free |
| Length | 21.8mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Mount | Panel |
| Number of Poles | 1 |
| Packaging | Bulk |
| Panel Thickness | 0.118inch |
| RoHS Compliant | Yes |
| Series | W51 |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 50V |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity W51-A152A1-5 Datasheet
Download the complete datasheet for TE Connectivity W51-A152A1-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

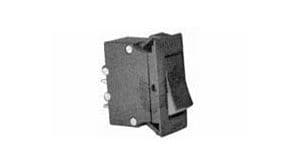

Product Images
