1-pole thermal circuit breaker with a 30A current rating and 250V AC voltage rating. Features a push-to-reset actuator, quick connect termination, and panel mount design. Operates within a temperature range of 0°C to 60°C. RoHS compliant and UL approved.
Voltage Rating250V
Current Rating30A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W54-XB1A4A10-30 technical specifications.
General
Actuator Type
Push to Reset
Approvals
UL
Breaker Type
Thermal
Circuit Function
SERIES TRIP
Color
White
Current Rating
30A
ELV
Non-Compliant
Height
35mm
Lead Free
Lead Free
Length
31mm
Max Operating Temperature
60°C
Min Operating Temperature
0°C
Mount
Panel
Number of Poles
1
Operating Supply Voltage
250V
Package Quantity
100
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W54
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
50V
Weight
0.881849oz
Width
14.6mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W54-XB1A4A10-30 Datasheet
Download the complete datasheet for TE Connectivity W54-XB1A4A10-30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

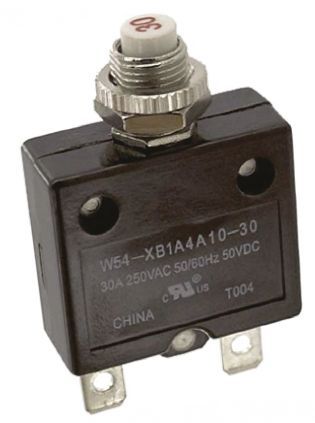

Product Images
