1-pole magnetic circuit breaker, 20A current rating, 277V AC voltage rating. Features a toggle actuator, panel mount design, and quick connect termination. Operates within a -40°C to 85°C temperature range. RoHS compliant with UL approvals.
Voltage Rating277V
Current Rating20A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W67-X2Q12-20 technical specifications.
General
Actuator Type
Toggle
Approvals
UL
Breaker Type
Magnetic (Hydraulic Delay)
Circuit Function
SERIES TRIP
Color
White
Current Rating
20A
ELV
Non-Compliant
Height
50.8mm
Length
51.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Poles
1
Package Quantity
24
Packaging
Tray
Panel Thickness
0.11inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W6
Termination
Quick Connect
Time to Trip
20s
Voltage Rating
277V
Voltage Rating (AC)
1.729V
Width
19.05mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W67-X2Q12-20 Datasheet
Download the complete datasheet for TE Connectivity W67-X2Q12-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

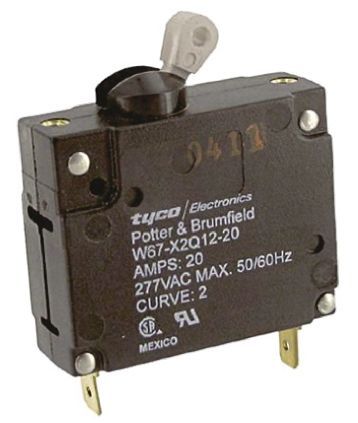

Product Images
