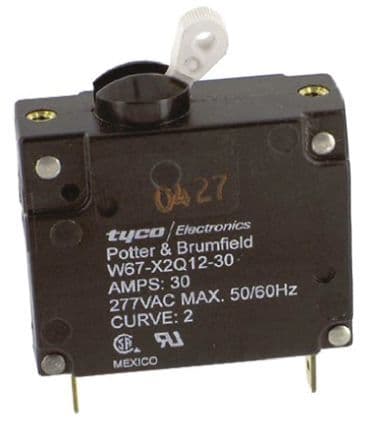

1-pole magnetic circuit breaker, 30A, 277V AC, panel mount with quick connect termination. Features a toggle actuator and hydraulic delay for series trip circuit function. Operates within a temperature range of -40°C to 85°C, with a time to trip of 20 seconds at 30A. UL approved and RoHS compliant.
Voltage Rating277V
Current Rating30A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W67-X2Q12-30 technical specifications.
General
Actuator Type
Toggle
Approvals
UL
Breaker Type
Magnetic (Hydraulic Delay)
Circuit Function
SERIES TRIP
Color
White
Current Rating
30A
ELV
Non-Compliant
Height
50.8mm
Lead Free
Contains Lead
Length
51.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Poles
1
Package Quantity
24
Panel Thickness
0.11inch
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W6
Termination
Quick Connect
Time to Trip
20s
Trip Current
30A
Voltage Rating
277V
Voltage Rating (AC)
1.729V
Width
19.05mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W67-X2Q12-30 Datasheet
Download the complete datasheet for TE Connectivity W67-X2Q12-30 to view detailed technical specifications.
