2-pole magnetic circuit breaker with a 20A current rating and 277V AC voltage rating. Features a rocker actuator, panel mount design, and quick connect termination. Operates within a temperature range of -40°C to 85°C, with a time to trip of 20 seconds at rated current. RoHS compliant and UL approved for general circuit protection applications.
Voltage Rating277V
Current Rating20A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W68-X2Q12-20 technical specifications.
General
Actuator Type
Rocker
Approvals
UL
Breaker Type
Magnetic (Hydraulic Delay)
Circuit Function
SERIES TRIP
Color
White
Current Rating
20A
ELV
Non-Compliant
Height
50.8mm
Lead Free
Contains Lead
Length
51.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Poles
2
Package Quantity
12
Packaging
Tray
Panel Thickness
0.11inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W6
Termination
Quick Connect
Time to Trip
20s
Voltage Rating
277V
Voltage Rating (AC)
1.729V
Weight
2.497397oz
Width
38.1mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W68-X2Q12-20 Datasheet
Download the complete datasheet for TE Connectivity W68-X2Q12-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

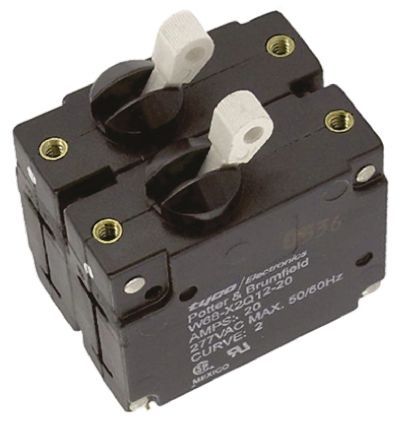

Product Images
