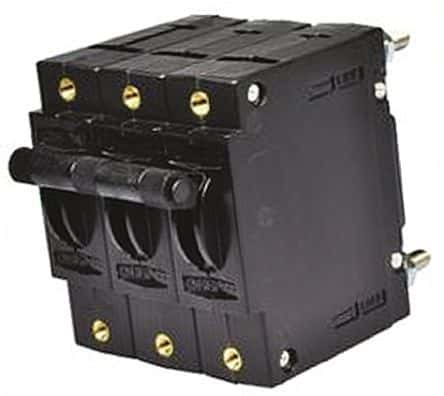

Three-pole magnetic circuit breaker with toggle actuator, designed for panel mounting with stud termination. Features a 15A current rating and 277V AC voltage rating, with a DC rated voltage of 65V. Offers hydraulic delay for circuit protection, with a time to trip of 20 seconds at 15A. Operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Voltage Rating277V
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W93-X112-15 technical specifications.
General
Actuator Type
Toggle
Approvals
UL
Breaker Type
Magnetic (Hydraulic Delay)
Circuit Function
SERIES TRIP
Color
Black
Current Rating
15A
ELV
Non-Compliant
Height
63.5mm
Lead Free
Not Applicable
Length
46.86mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Poles
3
Operating Supply Voltage
277V
Package Quantity
8
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W9
Termination
Stud
Time to Trip
20s
Trip Current
15A
Voltage Rating
277V
Voltage Rating (AC)
277V
DC Rated Voltage
65V
Width
57.15mm
Compliance
RoHS
Compliant
