Technical Specifications
Teledyne 712-9 technical specifications.
General
| Coil Current | 40.91mA |
| Coil Resistance | 220R |
| Coil Voltage (DC) | 9V |
| Color | Grey |
| Contact Material | Gold, Metal |
| Length | 9.4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Operate Time | 4ms |
| RoHS Compliant | No |
| Throw Configuration | DPDT |
Compliance
| RoHS | Not Compliant |
Datasheet
Teledyne 712-9 Datasheet
Download the complete datasheet for Teledyne 712-9 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

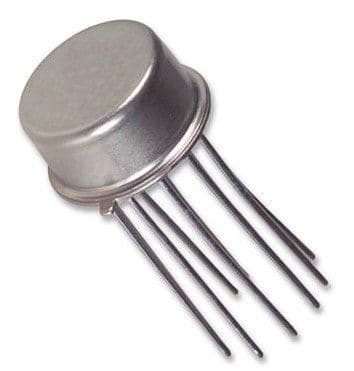

Product Images
