Technical Specifications
Telegesis ETRX2-PA technical specifications.
General
| Package/Case | Module |
| Current - Receiving | 37mA |
| Current - Transmitting | 106mA |
| Data Rate | 250Kbps |
| Frequency | 2.4GHz |
| Length | 37.75mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 5KB |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Sensitivity | -96dBm |
| Width | 20.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Telegesis ETRX2-PA Datasheet
Download the complete datasheet for Telegesis ETRX2-PA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

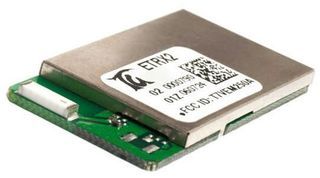

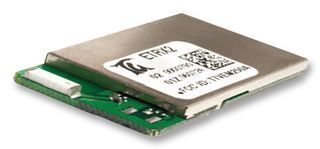

Product Images
