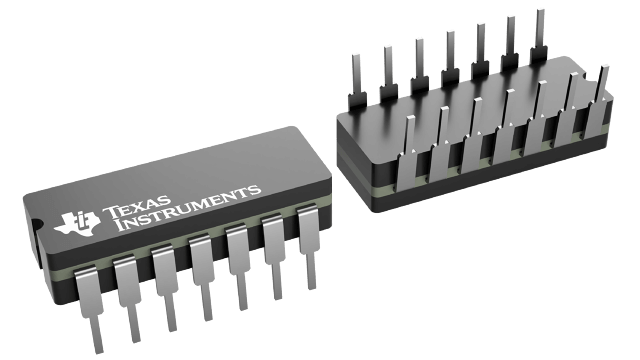

The 6-Bit Schmitt Trigger Inverter is a CMOS logic IC with a propagation delay of 16ns. It operates over a temperature range of -55°C to 125°C and can supply up to 24mA of current. The device is available in a surface mount package and is not RoHS compliant. It is designed for use in applications where a high level of output current is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments 5962-8762401VDA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| High Level Output Current | -24mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Contains Lead |
| Logic Function | Schmitt Trigger, Inverter |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Packaging | Rail/Tube |
| Propagation Delay | 16ns |
| Quiescent Current | 2uA |
| RoHS Compliant | No |
| Technology | CMOS |
| RoHS | Not Compliant |
Download the complete datasheet for Texas Instruments 5962-8762401VDA to view detailed technical specifications.
