Automotive Stereo Audio CODEC featuring 24-bit resolution and a 90dB signal-to-noise ratio. Supports sampling rates up to 96 kS/s with 3 analog inputs and 4 analog outputs. Includes an integrated headphone amplifier and operates across a wide temperature range of -40°C to 85°C. Interface options include Serial, I2C, SPI, 2-Wire, and 3-Wire. Packaged in a 28-TSSOP with gold contact plating, this RoHS compliant component is supplied on tape and reel.
PackageTSSOP
Power23mW
Quick Jump:
Technical Specifications
Texas Instruments 6PAIC23BIPWRG4Q1 technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Interface
Serial, I2C, SPI, 2-Wire, 3-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.42V
Number of A/D Converters
2
Number of ADC Channels
1
Number of Analog Inputs
3
Number of Analog Outputs
4
Number of D/A Converters
2
Number of DAC Channels
1
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
23mW
Radiation Hardening
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
96KS/s
Series
Automotive, AEC-Q100
Signal to Noise Ratio (SNR)
90dB
Type
General Purpose
Weight
0.004145oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments 6PAIC23BIPWRG4Q1 Datasheet
Download the complete datasheet for Texas Instruments 6PAIC23BIPWRG4Q1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

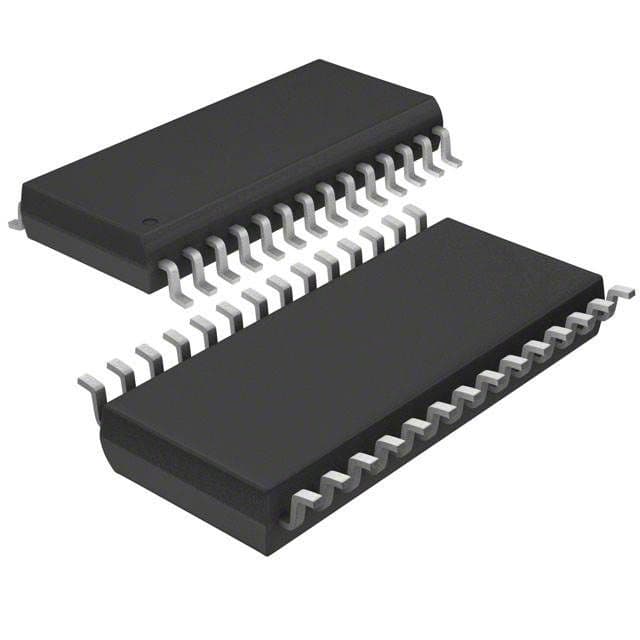

Product Images
