18-bit bus-interface flip-flops featuring 3-state outputs, designed for positive edge clock triggering. This D-type logic IC operates with a supply voltage of 5V (4.5V to 5.5V) and supports frequencies up to 90MHz. It offers 24mA output current capability, with non-inverting polarity and a propagation delay of 12.9ns. Packaged in a 56-pin SSOP for surface mounting, this component is RoHS compliant and operates across a temperature range of -40°C to 85°C.
Frequency90MHz
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74ACT16823DL technical specifications.
General
Package/Case
SSOP
Clock Edge Trigger Type
Positive Edge
Contact Plating
Gold
Frequency
90MHz
High Level Output Current
-24mA
Input Capacitance
3pF
Lead Free
Lead Free
Logic Function
Flip-Flop, D-Type
Low Level Output Current
24mA
Max Frequency
90MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
18
Number of Bits per Element
9
Number of Circuits
1
Number of Elements
2
Number of Input Lines
1
Number of Output Lines
3
Number of Outputs
18
Operating Supply Voltage
5V
Output Current
24mA
Output Type
3-STATE
Package Quantity
20
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
12.9ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ACT
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
11.5ns
Weight
0.024508oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments 74ACT16823DL Datasheet
Download the complete datasheet for Texas Instruments 74ACT16823DL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

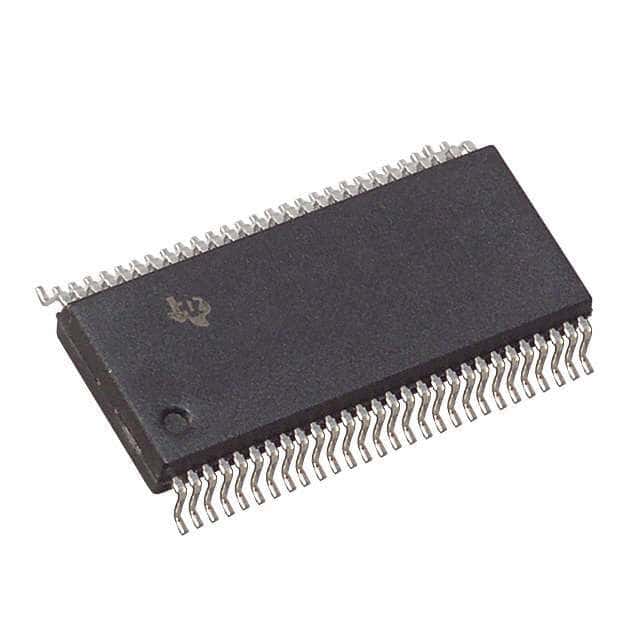

Product Images
