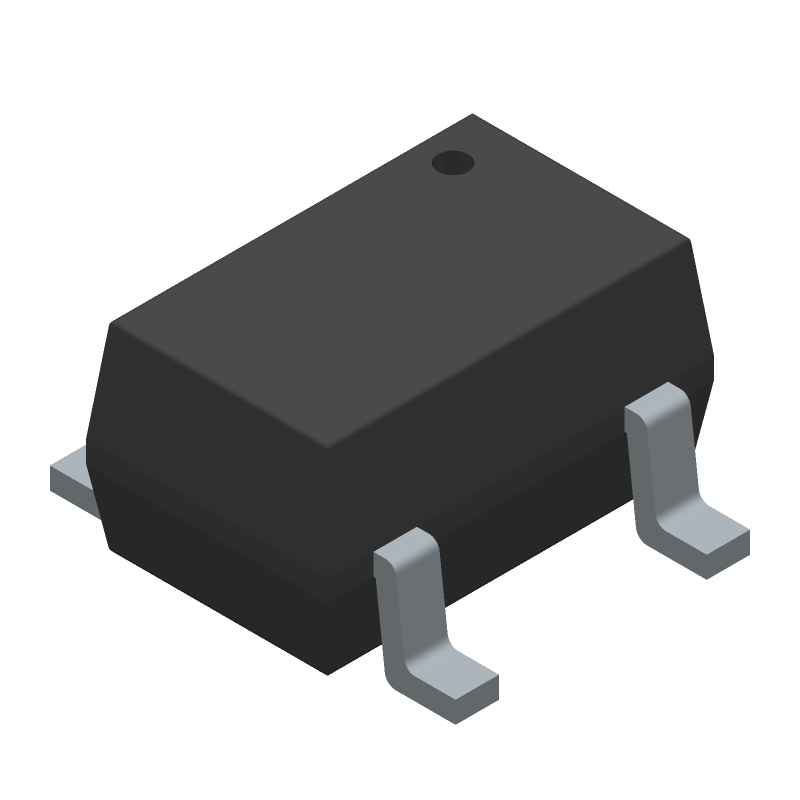

Single CMOS inverter with one gate, one element, and one input. Features a 7ns propagation delay and 12ns turn-on delay time. Operates from a 2V to 5.5V supply voltage range with a quiescent current of 1uA. Designed for surface mount applications in a 5-SC70 package with gold contact plating. Suitable for operation between -40°C and 125°C, with high and low level output currents of -8mA and 8mA respectively.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments 74AHC1GU04DCKTG4 technical specifications.
General
| Package/Case | SC |
| Contact Plating | Gold |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | Inverter |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Inputs | 1 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Propagation Delay | 7ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74AHC |
| Technology | CMOS |
| Turn-On Delay Time | 12ns |
| Weight | 8.8E-05oz |
Compliance
| RoHS | Compliant |
