16-bit buffer/driver featuring 3-state outputs, designed for surface mounting in a TFBGA package. This CMOS buffer offers 16 non-inverting channels, each with 4 bits, supporting a supply voltage range of 1.65V to 3.6V. It delivers ±24mA of output current at both high and low levels, with a typical propagation delay of 3ns. Operating across a temperature range of -40°C to 85°C, this component is ideal for high-speed logic applications.
PackageTFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74ALVCH16244GRDR technical specifications.
General
| Package/Case | TFBGA |
| High Level Output Current | -24mA |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 4 |
| Number of Channels | 16 |
| Number of Elements | 4 |
| Number of Input Lines | 16 |
| Number of Inputs | 16 |
| Number of Output Lines | 3 |
| Number of Outputs | 16 |
| Output Type | 3-STATE |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3ns |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | 74ALVCH |
| Technology | CMOS |
| Turn-On Delay Time | 5.7ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments 74ALVCH16244GRDR Datasheet
Download the complete datasheet for Texas Instruments 74ALVCH16244GRDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

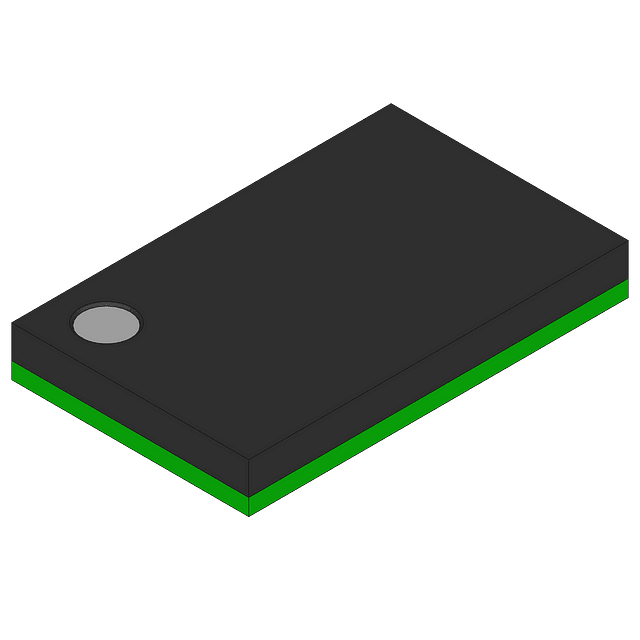

Product Images
