Texas Instruments
74ALVCH16245GRDR
ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PBGA54, PLASTIC, LFBGA-54
PackageTFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74ALVCH16245GRDR technical specifications.
General
| Package/Case | TFBGA |
| High Level Output Current | 24mA |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3.6ns |
| RoHS Compliant | No |
| Series | 74ALVCH |
| Weight | 0.003517oz |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments 74ALVCH16245GRDR Datasheet
Download the complete datasheet for Texas Instruments 74ALVCH16245GRDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

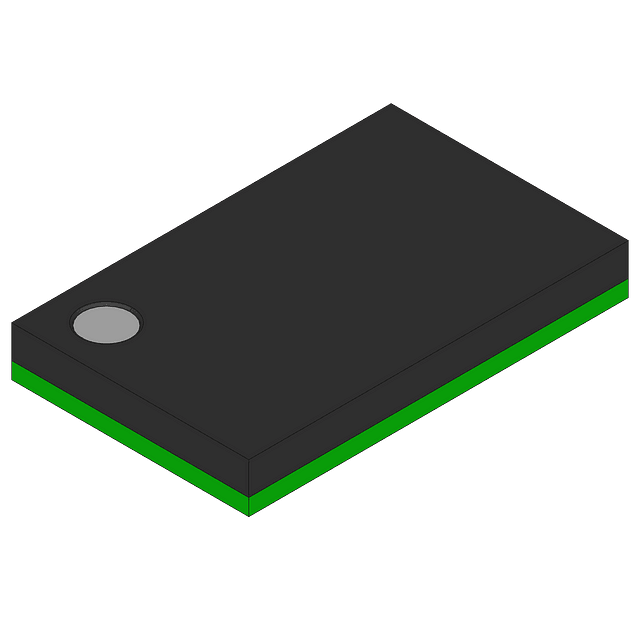

Product Images
