16-bit bidirectional bus transceiver featuring 3-state outputs. Operates with a supply voltage range of 1.65V to 3.6V and offers 24mA high and low level output current. This CMOS technology device provides a propagation delay of 3ns and is packaged in a TFBGA for surface mounting. Designed for operation between -40°C and 85°C, it is RoHS compliant and lead-free.
PackageTFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74ALVCH16245ZRDR technical specifications.
General
| Package/Case | TFBGA |
| Contact Plating | Copper, Tin, Silver |
| Direction | Bidirectional |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Channels | 16 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3ns |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74ALVCH |
| Technology | CMOS |
| Turn-On Delay Time | 5.7ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74ALVCH16245ZRDR Datasheet
Download the complete datasheet for Texas Instruments 74ALVCH16245ZRDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

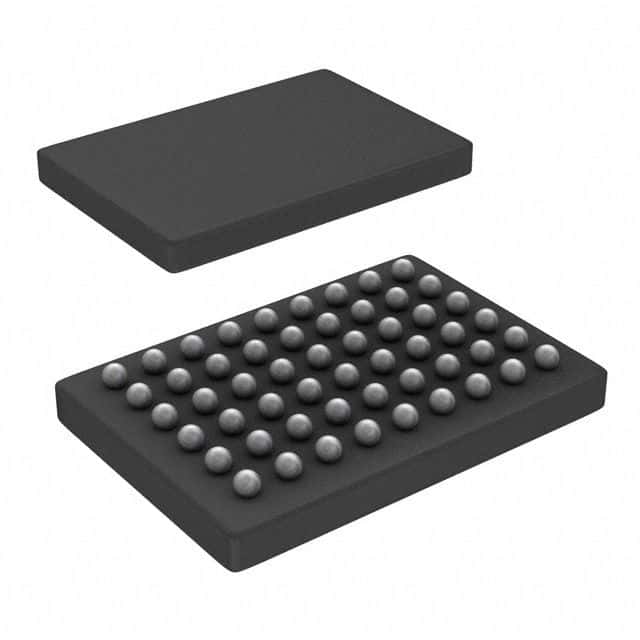

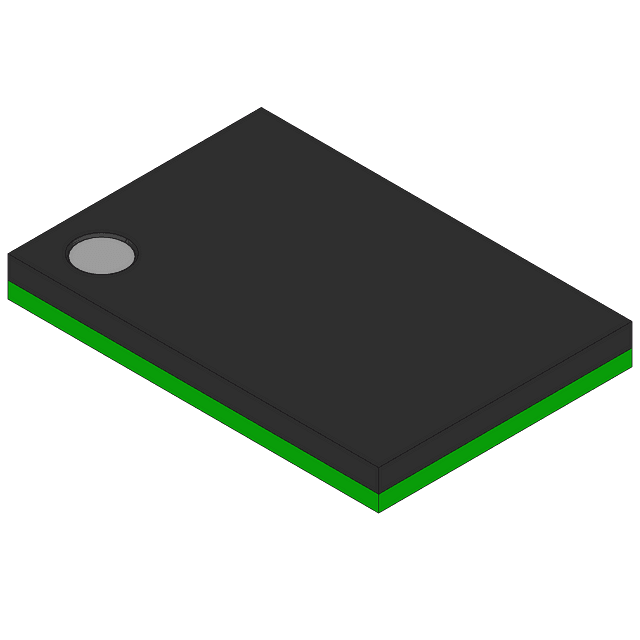

Product Images
