16-Bit Bus Transceiver and Transparent D-Type Latch with 8 Independent Buffers. Features bidirectional data flow, 3-state outputs, and CMOS technology. Operates from a 1.65V to 3.6V supply with a max operating temperature of 85°C. Surface mountable in an LFBGA package with copper, tin, and silver contact plating. Includes 2 circuits, each with 8 independent buffers, offering a 4.9ns propagation delay.
PackageLFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74ALVCH32973ZKER technical specifications.
General
| Package/Case | LFBGA |
| Contact Plating | Copper, Tin, Silver |
| Direction | Bidirectional |
| Height | 0.85mm |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 13.5mm |
| Logic Function | Buffer, Transceiver, Inverting, Latch |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Channels | 16 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Outputs | 40 |
| Output Type | 3-STATE |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4.9ns |
| Quiescent Current | 60uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74ALVCH |
| Technology | CMOS |
| Turn-On Delay Time | 3ns |
| Weight | 0.005877oz |
| Width | 5.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74ALVCH32973ZKER Datasheet
Download the complete datasheet for Texas Instruments 74ALVCH32973ZKER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

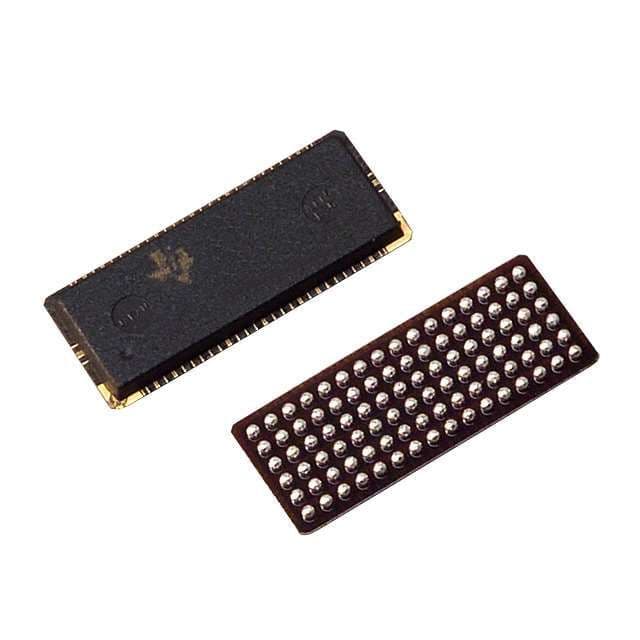

Product Images
