16-bit dual-supply bus transceiver featuring configurable translation and 3-state outputs. This CMOS logic IC operates bidirectionally with a data rate of 400Mbps and a propagation delay of 3.1ns. It supports a supply voltage range of 1.4V to 3.6V and offers output currents of 12mA. The device is surface-mount, packaged in FBGA with dimensions of 8.1mm x 5.6mm x 0.8mm, and operates from -40°C to 85°C.
PackageFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74AVCB164245ZRDR technical specifications.
General
| Package/Case | FBGA |
| Contact Plating | Copper, Tin, Silver |
| Data Rate | 400Mbps |
| Direction | Bidirectional |
| Height | 0.8mm |
| High Level Output Current | -12mA |
| Lead Free | Lead Free |
| Length | 8.1mm |
| Logic Function | Translator, Transceiver |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 16 |
| Number of Elements | 2 |
| Number of Inputs | 16 |
| Number of Outputs | 16 |
| Output Current | 12mA |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3.1ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74AVCB |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 5ns |
| Weight | 0.003527oz |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74AVCB164245ZRDR Datasheet
Download the complete datasheet for Texas Instruments 74AVCB164245ZRDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

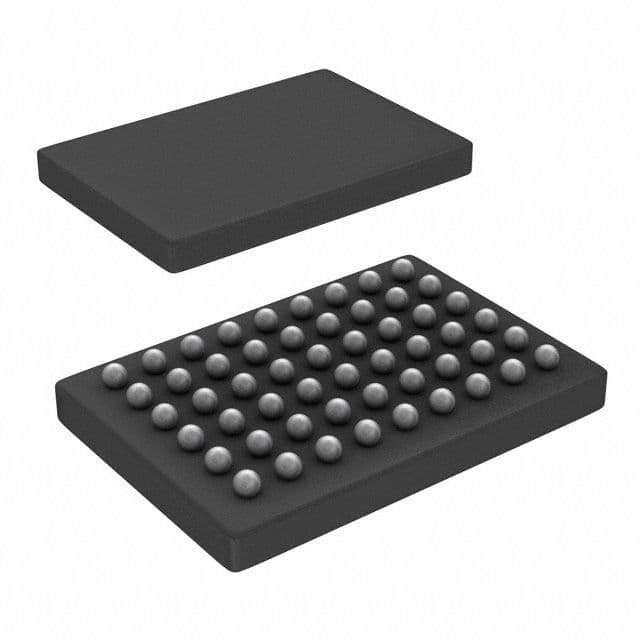

Product Images
