2-channel FET bus switch with level shifter, featuring a 3.3V operating voltage and 100MHz bandwidth. This surface mountable component offers 2 independent SPST switches with a 0.25ns propagation delay and 64mA output current. Operating across a -40°C to 85°C temperature range, it utilizes CMOS technology and is supplied in a VSSOP package.
PackageVSSOP
Current20uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments 74CB3T3306DCURG4 technical specifications.
General
| Bandwidth | 100MHz |
| Package/Case | VSSOP |
| Contact Plating | Gold |
| High Level Output Current | -128mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Switches | 2 |
| Output Current | 64mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.25ns |
| Quiescent Current | 20uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74CB |
| Supply Current | 20uA |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 9ns |
| Weight | 0.000339oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74CB3T3306DCURG4 Datasheet
Download the complete datasheet for Texas Instruments 74CB3T3306DCURG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

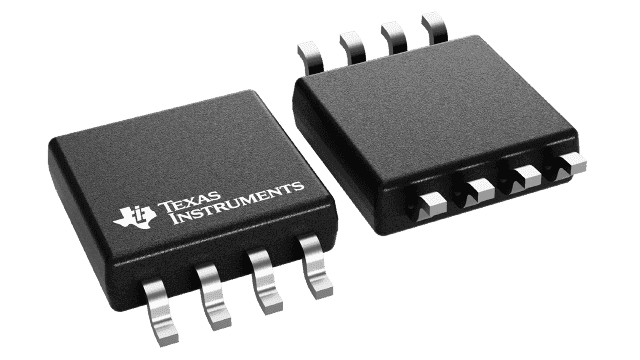

Product Images
