Dual 1-of-4 FET Multiplexer/Demultiplexer, featuring 2 independent circuits and 8 bits of data handling. Operates with a single supply voltage ranging from 2.3V to 3.6V. Offers a propagation delay of 6.8ns and a turn-on delay time of 6.8ns. This surface-mount component is housed in a 16-SSOP package, suitable for operation between -40°C and 85°C, with a high level output current of -128mA and a low level output current of 128mA.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments 74CBTLV3253DBQRG4 technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -128mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 2 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 6.8ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74CBTLV |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 6.8ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74CBTLV3253DBQRG4 Datasheet
Download the complete datasheet for Texas Instruments 74CBTLV3253DBQRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

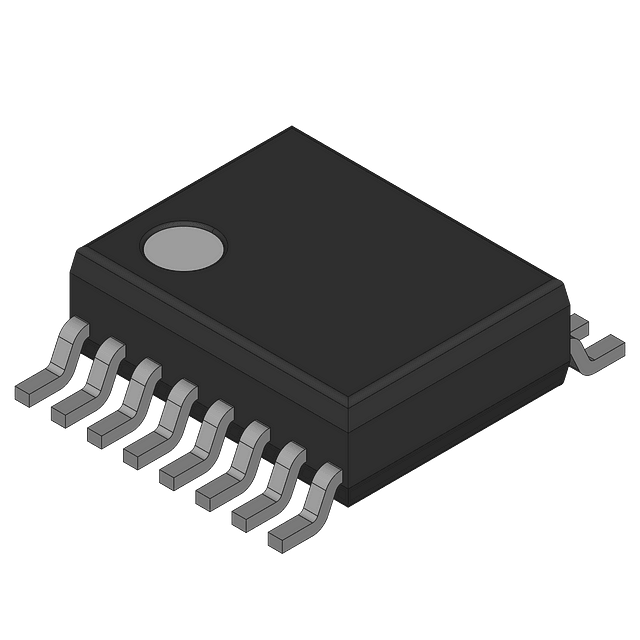

Product Images
