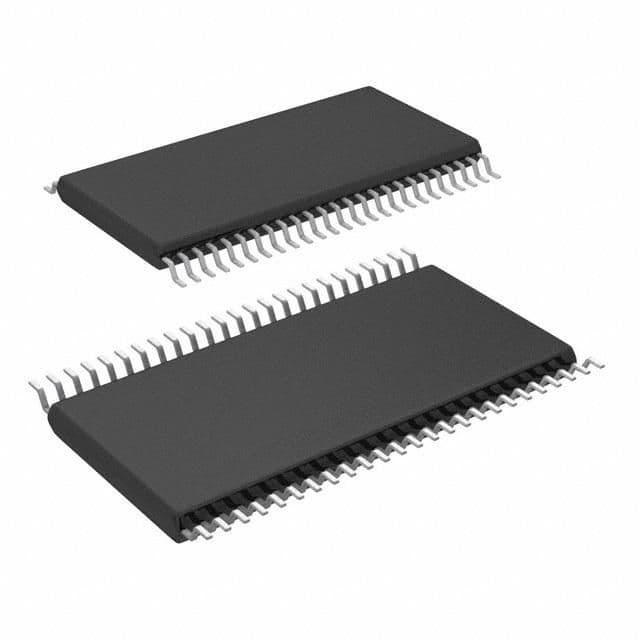

74FCT162H245CTPACT

16-Bit Bidirectional Transceiver, 3-State, CMOS, 4.1ns, 5V, TSSOP

16-bit bidirectional bus transceiver featuring bus-hold circuitry and 3-state outputs. This CMOS logic IC operates from a 4.5V to 5.5V supply voltage with a typical 5V operating voltage. It offers a propagation delay of 4.1ns and a turn-on delay time of 5.8ns, with output currents of ±24mA. The component is housed in a 48-TSSOP package with gold contact plating, designed for surface mounting and operating across a temperature range of -40°C to 85°C.

PackageTSSOP

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Texas Instruments 74FCT162H245CTPACT technical specifications.

General

Package/Case	TSSOP
Contact Plating	Gold
Direction	Bidirectional
High Level Output Current	-24mA
Lead Free	Lead Free
Logic Function	Transceiver, Inverting
Low Level Output Current	24mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Min Supply Voltage	4.5V
Mount	Surface Mount
Number of Bits	16
Number of Bits per Element	8
Number of Channels	16
Number of Circuits	2
Number of Elements	2
Operating Supply Voltage	5V
Output Type	3-STATE
Package Quantity	2000
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	4.1ns
Quiescent Current	5uA
Radiation Hardening	No
RoHS Compliant	Yes
Series	74FCT
Technology	CMOS
Turn-On Delay Time	5.8ns
Weight	0.007873oz
