Texas Instruments
74HSTL162822DGGRG4
TTL/H/L SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDSO64, GREEN, PLASTIC, TSSOP-64
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments 74HSTL162822DGGRG4 technical specifications.
General
| Package/Case | TSSOP |
| High Level Output Current | 12mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | D-Type |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.45V |
| Output Current | 12mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74HSTL |
| Turn-On Delay Time | 1.7ns |
| Weight | 0.009263oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74HSTL162822DGGRG4 Datasheet
Download the complete datasheet for Texas Instruments 74HSTL162822DGGRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

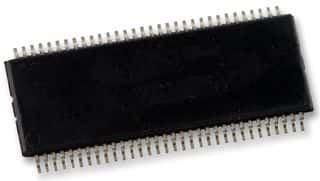

Product Images
