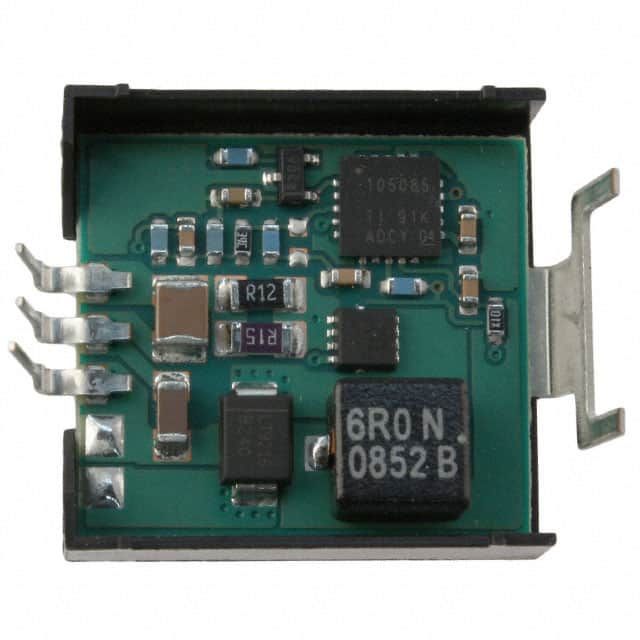

2A, 3.3V output switching regulator with a maximum switching frequency of 1050kHz. This power management IC features over-temperature protection (OTP) and short-circuit protection (SCP). Operating from a 7V to 15V input voltage range, it delivers up to 2A output current with 82% efficiency. The component is housed in a through-hole mounted module package with dimensions of 7.62mm depth, 0.94inch height, 0.9inch length, and 0.31inch width, weighing 7g. It is lead-free, RoHS compliant, and designed for a wide operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments 78HT233VC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments 78HT233VC technical specifications.
| Package/Case | Module |
| Depth | 7.62mm |
| Efficiency | 82% |
| Features | OTP, SCP |
| Height | 0.94inch |
| Lead Free | Lead Free |
| Length | 0.9inch |
| Max Input Voltage | 15V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 6.6W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Voltage | 3.3V |
| Package Quantity | 25 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | 78HT200 |
| Voltage - Output 1 | 3.3V |
| Weight | 7g |
| Width | 0.31inch |
| RoHS | Compliant |
