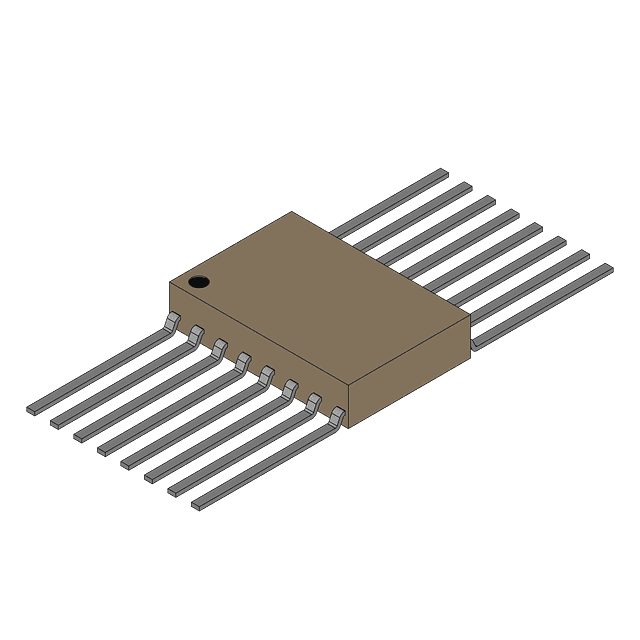

Asynchronous 12-Bit Binary Counters 16-CFP -55 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments 8500401FA technical specifications.
General
| Direction | Unidirectional |
| Lead Free | Contains Lead |
| Logic Function | Counter |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 225ns |
| RoHS Compliant | No |
| Technology | CMOS |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments 8500401FA Datasheet
Download the complete datasheet for Texas Instruments 8500401FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
