8-bit Analog-to-Digital Converter (ADC) featuring a 200MS/s sampling rate and single-ended input. This surface-mount component offers 0.95 LSB differential nonlinearity and -1.2 LSB integral nonlinearity, with an 8-bit resolution. Operating from a 2.7V to 3.6V supply, it consumes a maximum of 210mW power. The ADC is housed in a 24-TSSOP package with tin, matte contact plating, suitable for industrial temperature ranges of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
PolarityUnipolar
Power210mW
Quick Jump:
Technical Specifications
Texas Instruments ADC08200CIMTX/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 200000KS/s |
| Differential Nonlinearity | 0.95LSB |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | -1.2LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 21mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 210mW |
| Power Dissipation | 21W |
| Radiation Hardening | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 200MS/s |
| Signal to Noise Ratio (SNR) | 47dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC08200CIMTX/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC08200CIMTX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

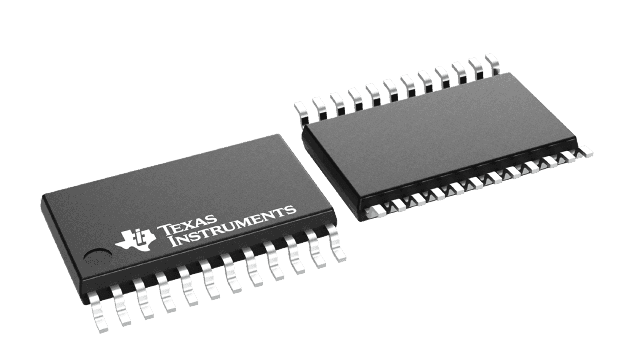

Product Images
