8-Bit, 4-Channel Analog-to-Digital Converter (ADC) with a sampling rate of up to 500 kS/s. Features a single-ended input type and SPI serial interface. Operates from a 2.7V to 5.25V supply voltage with a nominal supply current of 1.35mA. Offers an integral nonlinearity of -0.3 LSB and a signal-to-noise ratio of 49.5 dB. Packaged in a 10-VSSOP surface-mount configuration, suitable for operation between -40°C and 85°C.
PackageMSOP
MountingSurface Mount
PolarityUnipolar
Power2.2mW
Quick Jump:
Technical Specifications
Texas Instruments ADC084S051CIMM/NOPB technical specifications.
General
| Package/Case | MSOP |
| Conversion Rate | 500KS/s |
| Height | 0.86mm |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | -0.3LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.35mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 4 |
| Number of Bits | 8 |
| Number of Channels | 4 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 2.2mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 500KS/s |
| Signal to Noise Ratio (SNR) | 49.5dB |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC084S051CIMM/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC084S051CIMM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

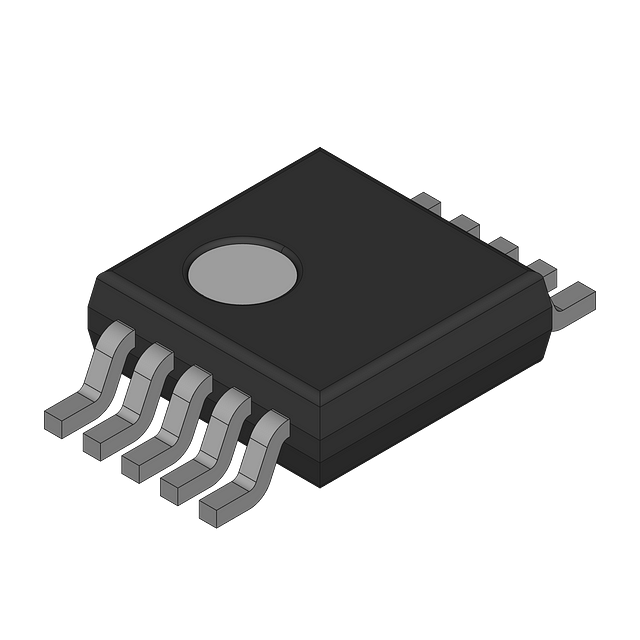

Product Images
