8-Bit, 200 MSPS Analog-to-Digital Converter (ADC) with a single-ended input. Features a 1.3 LSB Integral Nonlinearity (INL) and a 46.3 dB Signal-to-Noise Ratio (SNR). Operates with a 2.7V to 3.6V supply voltage, consuming 543mW of power. This component is housed in a 48-TQFP package and is qualified for automotive applications, with an operating temperature range of -40°C to 105°C.
PackageTQFP
PolarityUnipolar
Power543mW
Quick Jump:
Technical Specifications
Texas Instruments ADC08B200QCIVS/NOPB technical specifications.
General
| Package/Case | TQFP |
| Conversion Rate | 200000KS/s |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1.3LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 2.7V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Consumption | 543mW |
| Radiation Hardening | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 105000000S/s |
| Series | PowerWise® |
| Signal to Noise Ratio (SNR) | 46.3dB |
| Spurious-free dynamic range (SFDR) | 56dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC08B200QCIVS/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC08B200QCIVS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

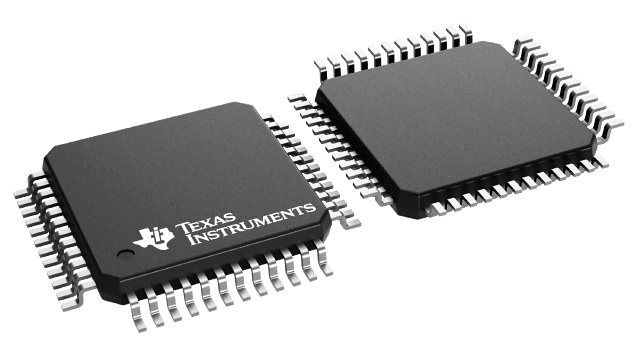

Product Images
