8-bit dual analog-to-digital converter (ADC) with a sampling rate of 1 GS/s per channel, or a single channel at 2.0 GSPS. Features differential inputs, LVDS and parallel interfaces, and a 0.9 LSB Integral Nonlinearity. Operates from a 1.8V to 2V supply, with a typical 1.9V operating voltage and 1.6W maximum power dissipation. This surface mount component is housed in a 128-HLQFP package with tin plating and operates across a -40°C to 85°C temperature range.
PackageLQFP
MountingSurface Mount
Power1.6W
Quick Jump:
Technical Specifications
Texas Instruments ADC08D1020CIYB/NOPB technical specifications.
General
| Package/Case | LQFP |
| Contact Plating | Tin |
| Conversion Rate | 1000000KS/s |
| Differential Nonlinearity | 0.6LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.9LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.6W |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 8 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Inputs | 21 |
| Operating Supply Voltage | 1.9V |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Consumption | 1.6W |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 1GS/s |
| Signal to Noise Ratio (SNR) | 46.8dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC08D1020CIYB/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC08D1020CIYB/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

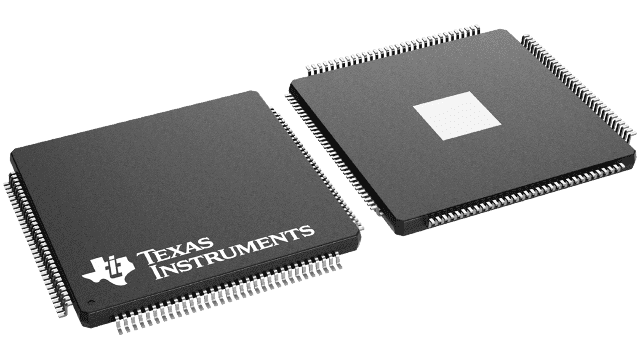

Product Images
