10-bit analog-to-digital converter (ADC) with a 40 MSPS sampling rate. Features a 1 LSB integral nonlinearity and 0.9 LSB differential nonlinearity. Operates from a 2.5V to 3.6V supply voltage, consuming 55.5mW maximum power. Includes a parallel interface and is packaged in a 28-TSSOP with tin, matte contact plating. Suitable for automotive applications, operating across a -40°C to 85°C temperature range.
PackageTSSOP
PolarityBipolar
Power55.5mW
Quick Jump:
Technical Specifications

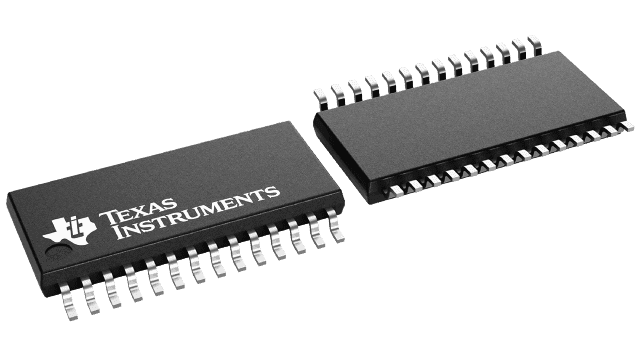

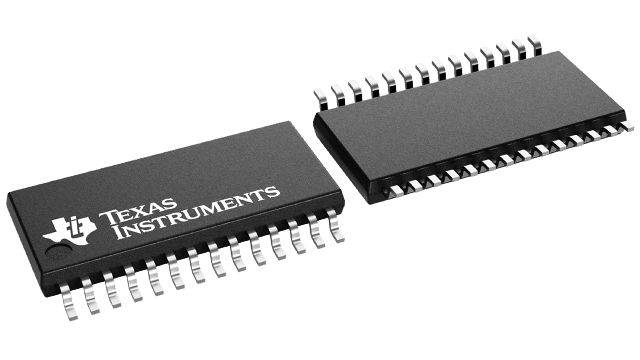

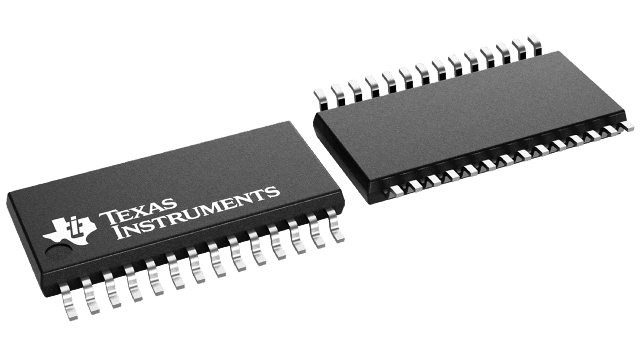

Texas Instruments ADC10040QCIMT/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 40000KS/s |
| Differential Nonlinearity | 0.9LSB |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 55.5mW |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 2.5V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Consumption | 55.5mW |
| Power Dissipation | 55.5mW |
| Radiation Hardening | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 40MS/s |
| Signal to Noise Ratio (SNR) | 59.5dB |
| Spurious-free dynamic range (SFDR) | 80dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC10040QCIMT/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC10040QCIMT/NOPB to view detailed technical specifications.
