10-bit, 80 MSPS Analog-to-Digital Converter (ADC) with a single analog input. Features a parallel interface, bipolar polarity, and a sampling rate of 80 MS/s. Offers Integral Nonlinearity (INL) of -1.4 LSB and a Signal-to-Noise Ratio (SNR) of 59.5 dB. Operates with a supply voltage range of 2.7V to 3.6V. Packaged in a 28-TSSOP for surface mounting, with tin, matte contact plating. Suitable for operation between -40°C and 85°C.
PackageTSSOP
MountingSurface Mount
PolarityBipolar
Power78.6mW
Quick Jump:
Technical Specifications
Texas Instruments ADC10080CIMTX/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 80000KS/s |
| Integral Nonlinearity (INL) | -1.4LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 78.6mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 78.6mW |
| Power Dissipation | 78.6W |
| Radiation Hardening | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 80000000S/s |
| Signal to Noise Ratio (SNR) | 59.5dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC10080CIMTX/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC10080CIMTX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

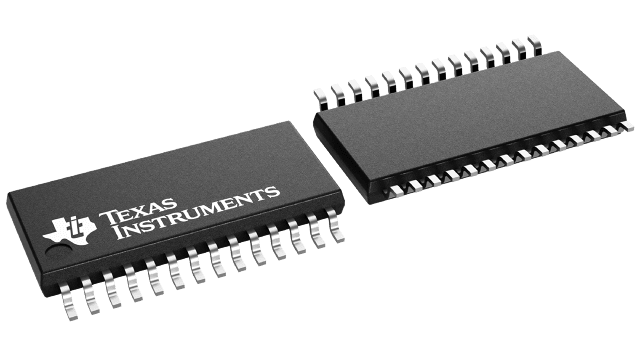

Product Images
