10-bit, 189kSPS, single-channel SAR Analog-to-Digital Converter (ADC) featuring an I²C interface and alert pin. This surface-mount component offers a 10-bit resolution with an integral nonlinearity of 0.7 LSB. Operating from a 2.7V to 5.5V single supply, it consumes a nominal 740µA and has a maximum power dissipation of 15mW. The device is RoHS compliant and operates across a temperature range of -40°C to 105°C, housed in a compact 6-SOT-23-THIN package.
PackageTSOT
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments ADC101C021CIMK/NOPB technical specifications.
General
| Package/Case | TSOT |
| Height | 0.86mm |
| Integral Nonlinearity (INL) | 0.7LSB |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 740uA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Packaging | Cut Tape |
| Polarity | Unipolar |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 188.9KS/s |
| Supply Type | Single |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC101C021CIMK/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC101C021CIMK/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

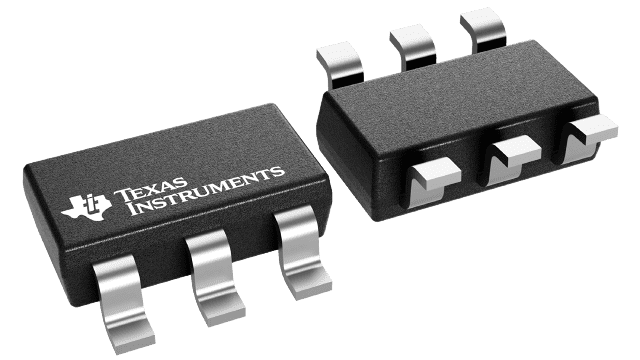

Product Images
