10-bit plus sign analog-to-digital converter (ADC) with 8 analog input channels. Features a serial interface, 74 kS/s conversion rate, and a unipolar output. Integral nonlinearity is 1.25 LSB, with a full-scale error of 1.5 LSB. Operates from a 4.5V to 5.5V supply voltage, consuming 1.3mA nominal supply current. Packaged in a 24-SOIC case with matte tin contact plating, suitable for surface mounting.
PackageSOIC W
MountingSurface Mount
PolarityUnipolar
Power15mW
Quick Jump:
Technical Specifications
Texas Instruments ADC10738CIWM/NOPB technical specifications.
General
| Package/Case | SOIC W |
| Contact Plating | Tin, Matte |
| Conversion Rate | 74KS/s |
| Full Scale Error | 1.5LSB |
| Integral Nonlinearity (INL) | 1.25LSB |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.3mA |
| Number of A/D Converters | 1 |
| Number of Bits | 10 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 5V |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 15mW |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 74KS/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC10738CIWM/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC10738CIWM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

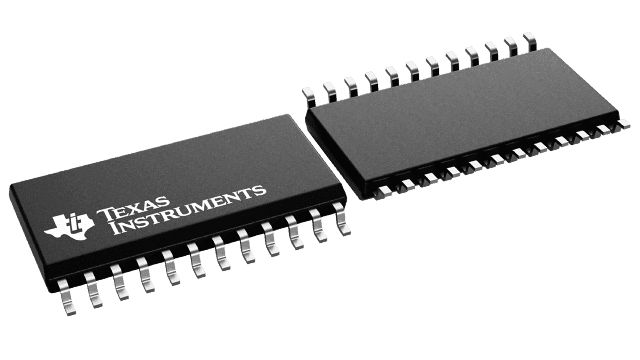

Product Images
