Dual 10-bit Analog-to-Digital Converter (ADC) with a sampling rate of 1GS/s per channel, or a single 2.0-GSPS channel. Features differential inputs, LVDS and parallel interfaces, and a bipolar polarity. Integral nonlinearity is 1.4 LSB, with a signal-to-noise ratio of 57dB. Operates from 1.8V to 2V supply voltage, with a typical power consumption of 2.77W. Packaged in a 292-BGA for surface mounting, with an operating temperature range of -40°C to 85°C.
PackageBGA
MountingSurface Mount
PolarityBipolar
Power2.77W
Quick Jump:
Technical Specifications
Texas Instruments ADC10D1000CIUT technical specifications.
General
| Package/Case | BGA |
| Conversion Rate | 1000000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1.4LSB |
| Interface | LVDS, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.7W |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 10 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 21 |
| Operating Supply Voltage | 1.9V |
| Package Quantity | 40 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 2.77W |
| Power Dissipation | 2.77W |
| Resolution | 10b |
| RoHS Compliant | No |
| Sampling Rate | 1GS/s |
| Signal to Noise Ratio (SNR) | 57dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments ADC10D1000CIUT Datasheet
Download the complete datasheet for Texas Instruments ADC10D1000CIUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

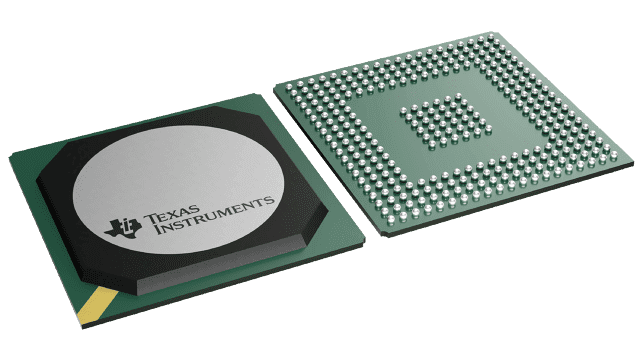

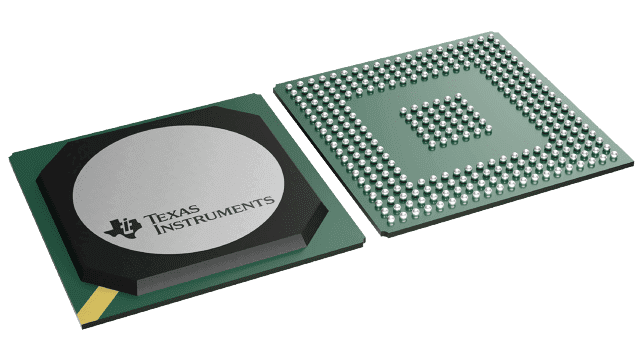

Product Images
