10-bit dual analog-to-digital converter (ADC) offering 1.0 GSPS per channel or a single 2.0 GSPS channel. Features differential inputs, LVDS and parallel interfaces, and a bipolar output. Achieves 0.5 LSB DNL and 1.4 LSB INL with a 57 dB SNR. Operates from a 1.8V to 2V supply, with a typical 1.9V operating voltage, and dissipates 2.77W. Packaged in a 292-BGA, surface-mount configuration with tin/silver contact plating, suitable for -40°C to 85°C operation.
PackageBGA
MountingSurface Mount
PolarityBipolar
Power2.77W
Quick Jump:
Technical Specifications
Texas Instruments ADC10D1000CIUT/NOPB technical specifications.
General
Package/Case
BGA
Contact Plating
Tin, Silver
Conversion Rate
1000000KS/s
Differential Nonlinearity
0.5LSB
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1.4LSB
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.77W
Max Supply Voltage
2V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
10
Number of Channels
2
Number of Converters
2
Number of Elements
2
Number of Inputs
21
Operating Supply Voltage
1.9V
Package Quantity
1
Packaging
Tray
Polarity
Bipolar
Power Consumption
2.77W
Power Dissipation
2.77W
Radiation Hardening
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
1GS/s
Signal to Noise Ratio (SNR)
57dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADC10D1000CIUT/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC10D1000CIUT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

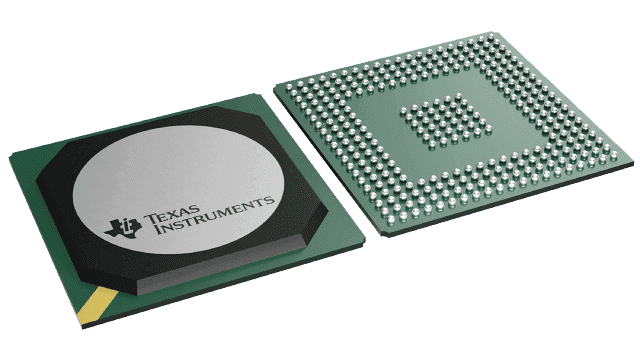

Product Images
