8-Bit Analog-to-Digital Converter (ADC) with a 15MS/s sampling rate. Features a parallel interface and 1 analog input. Integral Nonlinearity (INL) is 1.3LSB and Differential Nonlinearity (DNL) is 0.85LSB, with a Signal to Noise Ratio (SNR) of 49dB. Operates from a 2.7V to 3.6V supply voltage, consuming 33mW of power. Packaged in a 24-TSSOP with tin contact plating, suitable for surface mounting.
PackageTSSOP
MountingSurface Mount
PolarityUnipolar
Power33mW
Quick Jump:
Technical Specifications
Texas Instruments ADC1173CIMTC/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin |
| Differential Nonlinearity | 0.85LSB |
| Height | 1.05mm |
| Integral Nonlinearity (INL) | 1.3LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 7.9mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 36mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 8 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 33mW |
| Power Dissipation | 36mW |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| Sampling Rate | 15MS/s |
| Signal to Noise Ratio (SNR) | 49dB |
| Supply Type | Analog, Digital |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC1173CIMTC/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC1173CIMTC/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

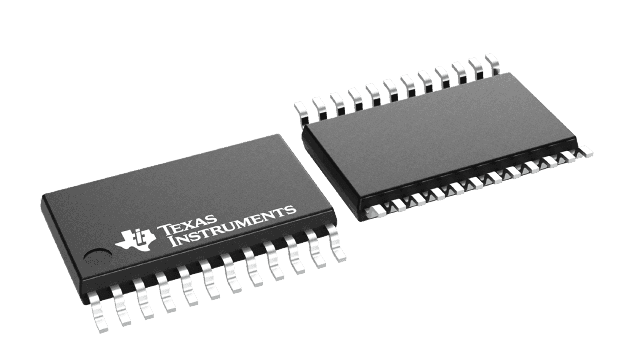

Product Images
