12-bit, 1-channel Analog-to-Digital Converter (ADC) with a 40 MS/s sampling rate. Features differential input type, parallel interface, and 1.8 LSB integral nonlinearity. Operates from a 4.75V to 5.25V supply voltage with a nominal supply current of 59mA. Packaged in an LQFP with tin/lead contact plating, suitable for surface mounting.
PackageLQFP
MountingSurface Mount
PolarityUnipolar
Power340mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12040CIVY technical specifications.
General
| Package/Case | LQFP |
| Contact Plating | Tin, Lead |
| Conversion Rate | 40000KS/s |
| Differential Nonlinearity | 1LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1.8LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 340mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 59mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Consumption | 340mW |
| Power Dissipation | 340mW |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 40000000S/s |
| Signal to Noise Ratio (SNR) | 70dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments ADC12040CIVY Datasheet
Download the complete datasheet for Texas Instruments ADC12040CIVY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

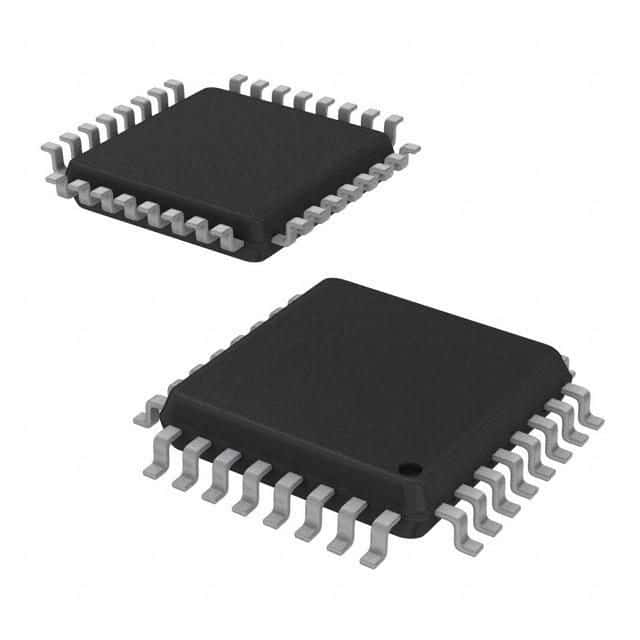

Product Images
