12-bit, 8-channel sampling analog-to-digital converter (ADC) with a conversion rate of 278 kS/s. Features 1 LSB integral nonlinearity and differential nonlinearity, with a full-scale error of 2.5 LSB. Operates from a 4.5V to 5.5V supply voltage, consuming 11.5mW of power. Encased in a PQFP package with tin/lead contact plating, suitable for surface mounting. Operating temperature range is -40°C to 85°C.
PackagePQFP
MountingSurface Mount
PolarityUnipolar
Power11.5mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12048CIVF technical specifications.
General
Package/Case
PQFP
Contact Plating
Tin, Lead
Conversion Rate
278KS/s
Differential Nonlinearity
1LSB
Full Scale Error
2.5LSB
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
875mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Tray
Polarity
Unipolar
Power Consumption
11.5mW
Power Dissipation
875mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
No
Sampling Rate
278KS/s
Supply Type
Analog, Digital
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments ADC12048CIVF Datasheet
Download the complete datasheet for Texas Instruments ADC12048CIVF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

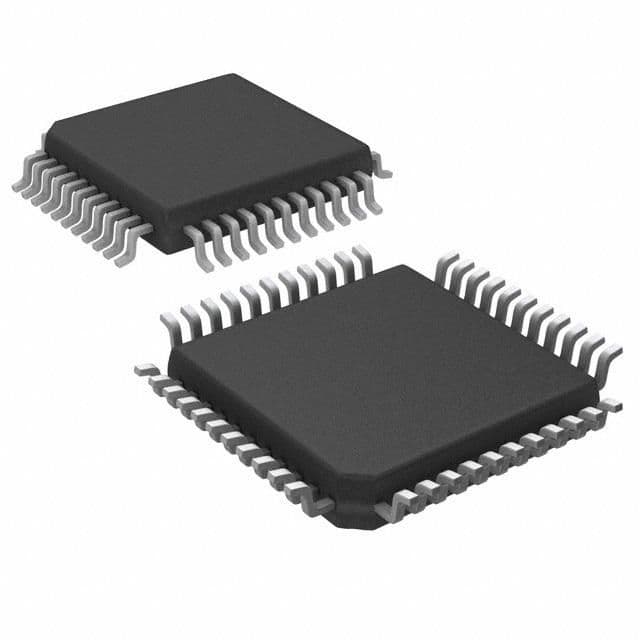

Product Images
