12-bit, single-channel successive approximation analog-to-digital converter (ADC) with a sampling rate of 188.9 kS/s. Features a unipolar, single-ended input and I2C/2-wire serial interface. Operates from a single 5V supply with a wide temperature range of -40°C to 105°C. Housed in a 6-pin TSOT-23 package for surface mounting.
PackageSOT-23-6
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments ADC121C021CIMK technical specifications.
General
Package/Case
SOT-23-6
Conversion Rate
188.9KS/s
Input Type
SINGLE-ENDED
Interface
I2C, Serial, 2-Wire
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Unipolar
Radiation Hardening
No
Resolution
12b
RoHS Compliant
No
Sampling Rate
188900S/s
Signal to Noise Ratio (SNR)
72.5dB
Supply Type
Single
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments ADC121C021CIMK Datasheet
Download the complete datasheet for Texas Instruments ADC121C021CIMK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

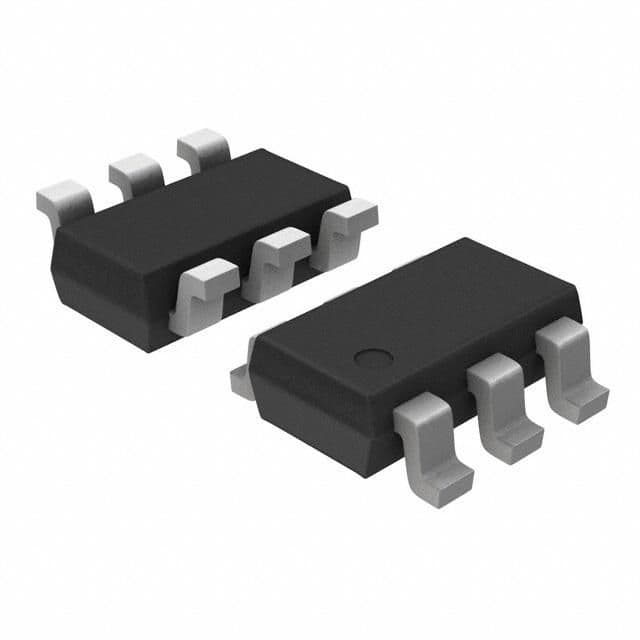

Product Images
