12-bit, single-channel analog-to-digital converter (ADC) with a sampling rate of 1 MS/s. Features a serial SPI interface, 1 LSB differential nonlinearity, and 1.2 LSB full-scale error. Operates from a single 2.7V to 5.25V supply with a nominal supply current of 2mA. Packaged in a 6-pin SOT-23 for surface mounting, with a temperature range of -40°C to 125°C.
PackageSOT-23
MountingSurface Mount
PolarityUnipolar
Power2mW
Quick Jump:
Technical Specifications
Texas Instruments ADC121S101CIMF/NOPB technical specifications.
General
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 1LSB |
| Full Scale Error | 1.2LSB |
| Integral Nonlinearity (INL) | -1.1LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 2mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Packaging | Cut Tape |
| Polarity | Unipolar |
| Power Consumption | 2mW |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 1MS/s |
| Signal to Noise Ratio (SNR) | 72.5dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC121S101CIMF/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC121S101CIMF/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

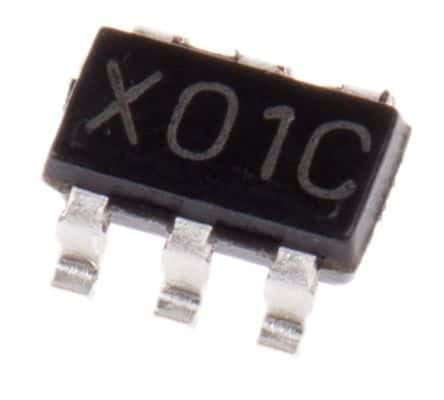

Product Images
