Texas Instruments
ADC128S102WGRQV
Radiation hardened 8-channel, 50 kSPS to 1 MSPS, 12-bit A/D converter 16-CFP -55 to 125
PolarityUnipolar
Power2.3mW
Quick Jump:
Technical Specifications
Texas Instruments ADC128S102WGRQV technical specifications.
General
Height
2.34mm
Integral Nonlinearity (INL)
1.1LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Length
9.906mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
2.7V
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Inputs
8
Polarity
Unipolar
Power Consumption
2.3mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
1MS/s
Signal to Noise Ratio (SNR)
72dB
Spurious-free dynamic range (SFDR)
91dB
Thickness
1.778mm
Width
6.35mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments ADC128S102WGRQV Datasheet
Download the complete datasheet for Texas Instruments ADC128S102WGRQV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

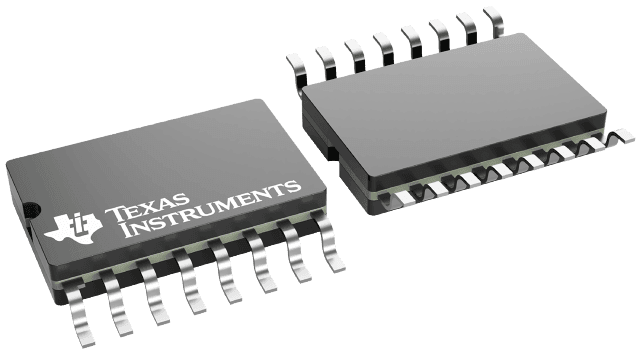

Product Images
