ADC12C080CISQE/NOPB
12-bit 80MSPS Pipelined ADC, Differential Input, Parallel Interface, TQFP
12-bit, single-channel, pipelined analog-to-digital converter (ADC) with a 200 MSPS sampling rate. Features differential input, 71.2 dB SNR, and 0.5 LSB integral nonlinearity. Operates from a 2.7V to 3.6V supply with 100mA nominal supply current. Packaged in a 32-pin LLP (Leadless Land Grid Array) for surface mounting. RoHS compliant and lead-free.
PackageTQFP
MountingSurface Mount
PolarityBipolar
Power300mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12C080CISQE/NOPB technical specifications.
General
| Package/Case | TQFP |
| Conversion Rate | 80000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 310mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 100mA |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 300mW |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 200000000S/s |
| Signal to Noise Ratio (SNR) | 71.2dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC12C080CISQE/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12C080CISQE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

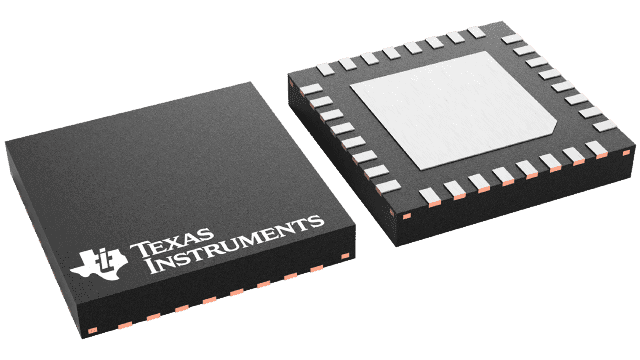

Product Images
