ADC12C105CISQ/NOPB
12-Bit 105MSPS ADC, Differential Input, Parallel Interface, 3.3V, WQFN
12-bit Analog-to-Digital Converter (ADC) with a 105 MSPS sampling rate and 1.0 GHz input bandwidth. Features differential input type, parallel interface, and 70.1 dB SNR. Operates from a 3V to 3.6V supply with 400mW maximum power dissipation. Integral nonlinearity is 0.5 LSB, and differential nonlinearity is 0.25 LSB. Surface mountable in a 32-WQFN package with tin, matte contact plating, suitable for -40°C to 85°C operation.
MountingSurface Mount
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12C105CISQ/NOPB technical specifications.
General
| Contact Plating | Tin, Matte |
| Conversion Rate | 105000KS/s |
| Differential Nonlinearity | 0.25LSB |
| Height | 0.8mm |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 400mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 105000000S/s |
| Signal to Noise Ratio (SNR) | 70.1dB |
| Supply Type | Single |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC12C105CISQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12C105CISQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

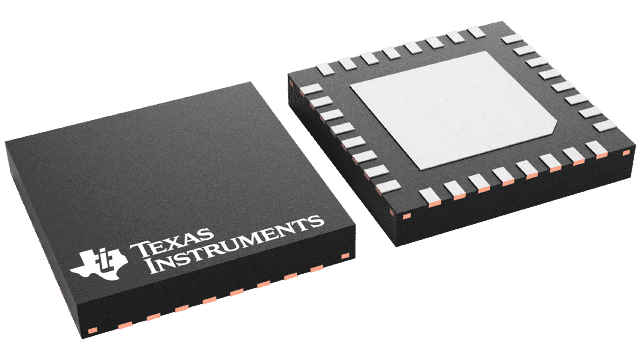

Product Images
