ADC12C105CISQE/NOPB
12-Bit 105MSPS ADC, Differential Input, Parallel Interface, 3.3V
12-bit, 105 MSPS Analog-to-Digital Converter (ADC) with a 1.0 GHz input bandwidth. This single-channel, bipolar differential input device features a parallel interface and a 70.1 dB Signal-to-Noise Ratio (SNR). Operating from a 3V to 3.6V single supply, it offers 0.5 LSB Integral Nonlinearity (INL) and a maximum power dissipation of 900mW. Designed for surface mounting, this component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Current121mA
MountingSurface Mount
PolarityBipolar
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12C105CISQE/NOPB technical specifications.
General
| Conversion Rate | 105000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 900mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 2 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 400mW |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 105MS/s |
| Series | PowerWise® |
| Signal to Noise Ratio (SNR) | 70.1dB |
| Supply Current | 121mA |
| Supply Type | Single |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC12C105CISQE/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12C105CISQE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

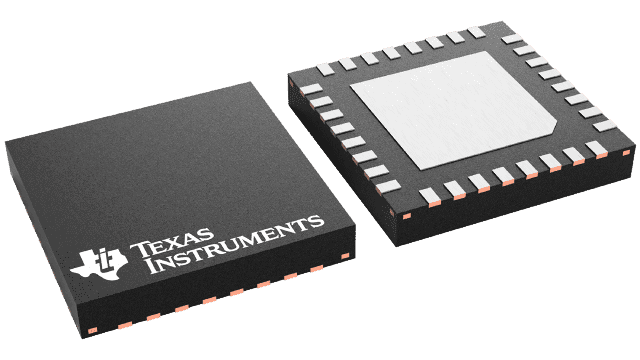

Product Images
